1. Introduction
Strontium lanthanum vanadate with the general formula of La1-xSrxVO3 (LSVO) (0 ≤ x ≤ 1) is a perovskite-based material that possesses interesting electrical properties. LSVO exhibits an insulator-to-metal transition with increasing dopant concentration. Plenty of studies have been carried out to probe this unusual conductivity.1-11) The transition occurs when the Sr content surpasses 0.178; since then, LSVO exhibits p-type metallic behavior with significantly high electrical conductivity. Liu et al.12) reported the conductivity in H2 atmosphere of the metallike La1-xSrxVO3 of 300 ~ 400 S·cm−1, which was two orders larger than pure LaVO3 and doubled the values of SrVO3. In the forms of thin films, La2/3Sr1/3VO3 had an electrical conductivity of up to 742.3 ~ 872.3 S·cm−1 at room condition.13) To explain this transition, Mott et al.14) and Dougier and Hagenmuller2) proposed that the metallic behavior stemmed from the Anderson transition induced by the random distribution of Sr2+ and La3+ ions. Meanwhile, A. V. Mahajan and colleagues argued that the transition originated from electron correlation effects.6)
LSVO has been widely investigated for applications in solid oxide fuel cell (SOFC) electrodes thanks to its metal-like electrical conductivity and its stability in tough conditions of SOFCs at 800 ~ 1,000 °C.12,15-22) Renewed interest in LSVO has grown in the last few years since several strategies were implemented to seek novel applications. The p-type La2/3Sr1/3VO3 thin films were reported to have high conductivity and high transmission in the visible range, which could be applicable as a high figure of merit transparent conducting oxide.13) Remarkably, p-type La2/3Sr1/3VO3 was also suggested to form a novel type of Schottky diodes when establishing a heterostructure with n-type TiO2.23) A Schottky contact is fundamentally realized by a disparity in work functions between a metal and a semiconductor. Thus, to maximize the performance of LSVO-based Schottky contacts, an understanding of the material’s work function is essential.
So far, the method of choice for the production of LSVO powder has been the solid-state reaction (SSR). SSR was selected not because of its simplicity and mass production capability but because of limitations when synthesizing by wet chemical route due to remarkable solubility of Sr(OH)2 in water. In fact, SSR usually brings about several disadvantages. First, the heat treatment temperatures in SSR are in the range of 1,000 ~ 1,500 °C,3,4,12,21,22) which results in a high degree of agglomeration. Second, since precursor particle sizes vary, the resulting powder is often inhomogeneous in terms of shape, size, and element distribution. The SSR process is also incapable of producing LSVO powder with small particle size and large surface area, which is one of the reasons for the postponement in research on LSVO for SOFCs in recent years. In 2019, Liu24) proposed a hydrothermal route to produce La0.7Sr0.3VO3, which reduced the heat treatment temperature to as low as 800 °C. In the study, LSVO NPs with good crystallinity and high densification were prepared. The electrical conductivity of hydrothermally produced LSVO NPs was marginally higher than that obtained from SSR. However, some drawbacks of the hydrothermal process, such as a complicated experimental procedure or a high pressure of gas in the reaction chamber, make it less effective. Therefore, a facile and effective method to synthesize LSVO nanoparticles is still in demand.
Among the nanoparticle production methods, our attention was paid to the co-precipitation method, which is relatively simple and can be adapted to produce highquality LSVO NPs. Also, it can be scaled up for largescale production purposes. Therefore, the present work was conducted with a major purpose: to evaluate the feasibility of using a co-precipitation pathway to fabricate well-dispersed single-phase LSVO NPs. To overcome the solubility issue of Sr(OH)2, the slurry containing hydroxide phases was cooled at 10 °C and then was purified with cooled water. The goal was achieved as LSVO NPs were successfully obtained. The NPs’ morphologies and their formation mechanism are demonstrated. Additionally, we investigated the work function of the collected powders and suggested potential implementations.
2. Experimental Procedure
2.1 Synthesis procedure

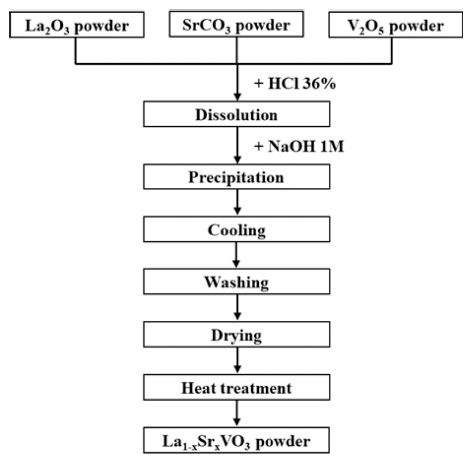

For co-precipitation synthesis, La2O3 (Samchun, 99.9 %), SrCO3 (Samchun, 95 %), V2O5 (Samchun, 99 %), HCl 36 % (Samchun), and NaOH were used as precursor materials. In the first step, La2O3, SrCO3, and V2O5 powders in stoichiometric proportions corresponding to 0.1 mol of LSVO were dissolved in 100 ml concentrated HCl at 110 °C. The as-obtained solution was cooled down to ambient temperature. For precipitation, the solution was treated with NaOH 1M solution under the stirring condition. Then, the slurry was cooled down by immersing the beaker in water at 10 °C in 1 h. This step aimed to reduce significantly the solubility of Sr(OH)2 in water. Next, the slurry was washed several times with deionized water and acetone and then was dried at 70 °C for 24 h. The precursor was ground into a fine powder and prepared for the hydrogen treatment, where V5+ in V2O5 was reduced to lower valence states existing in LSVO. For this, the precursor was loosely filled in an alumina boat and heat-treated in a reducing atmosphere consisting of 90 % N2 and 10 % H2. Since the hydrothermal route could produce LSVO at a hydrogen reduction temperature of 800 °C, the co-precipitation method was expected to reduce the temperature further. Hence, a temperature range of 500 to 700 °C was applied in this step to examine the optimized temperature for LSVO heat treatment as well as investigate the effect of heat treatment temperature on the characteristics of LSVO NPs. A flow chart summarizing the synthesis procedure is illustrated in Fig. 1.
Also, a La0.4Sr0.6VO3 (LSVO-0.6) sample was synthesized by the SSR method as a reference. Here, a mixture containing stoichiometric amounts of La2O3, SrCO3, and V2O5 was prepared by ball-milling and heat-treated at 1300 °C in 5 h under the reducing atmosphere.
2.2 Characterization methods
The crystal structures and morphologies of LSVO nanoparticles were characterized through XRD analysis (PANalytical X’Pert PRO X-ray diffractometer operated with a CuKα radiation (k = 1.5406 Å) source, the Netherlands) and a field-emission scanning electron microscope (JEOL JSM-6700F, Japan). The TEM analysis (Tecnai G2F30 S-TWIN, Thermo Fisher Scientific, USA) was conducted to examine the morphological features of NPs and the elemental distribution in the complex oxide. For measuring the work function, LSVO NPs were dispersed in ethanol, and the suspension was drop-casted on a Cu substrate to form a film. UPS spectra were taken with a He I emission lamp (hν = 21.2 eV) using KAlpha+ (Thermo Fisher Scientific). The Fermi level was calibrated by referring to the Fermi level of Cu substrate, and a bias voltage of -10 V was applied.
3. Results and Discussion
3.1 XRD analysis of LSVO powders
La0.4Sr0.6VO3 (LSVO-0.6) composition was chosen to investigate the effect of heat treatment temperature on the characteristics of LSVO NPs. The XRD patterns of powders prepared by SSR and co-precipitation methods are shown in Fig. 2(a) and (b). The product prepared by SSR [Fig. 2(a)] shows the characteristic peaks of La0.4Sr0.6VO3. The peaks are located at 2θ of 23.08, 32.90, 40.60, 47.13, 58.58, 68.78 and 78.24, corresponding to the (101), (002), (220), (202), (222), (123), and (004) planes, respectively. Additional peaks detected on XRD patterns at 28.88 and 31.81 are associated with the La0.4Sr0.6VO4 phase.

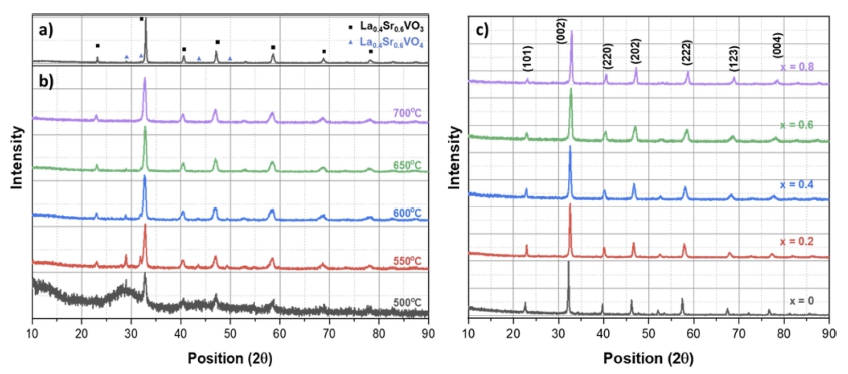

Fig. 2
XRD patterns of: (a) La0.4Sr0.6VO3 prepared by SSR, (b) La0.4Sr0.6VO3 prepared by co-precipitation method and heat treated at different reduction temperatures; (c) La1-xSrxVO3 with x = 0 – 0.8 prepared by co-precipitation method at 700 °C.
The main phase in LSVO-06 powders prepared by coprecipitation method and heat-treated at 500 ~ 700 °C is La0.4Sr0.6VO3 [Fig. 2(b)]. At a temperature of as low as 500 °C, although peaks of the La0.4Sr0.6VO3 phase can be detected, the powder remains amorphous, and peaks of the oxidized La0.4Sr0.6VO4 phase are still observed. With the increasing temperature, the desired phase La0.4Sr0.6VO3 becomes more dominant, whereas the peaks accounting for the oxidized phase at 28.88, 31.81, 43.53, and 49.29 show a declining tendency in intensity, indicating a decrease in its concentration. The second phase can barely be recognized in the XRD pattern at 650 °C, and it completely disappears at 700 °C. These results indicate that the LSVO powders can be produced at a heat treatment temperature of as low as 700 °C. This temperature is 100 °C lower than that of the hydrothermal process and almost half of the SSR temperature.
Furthermore, from Fig. 2(a) and (b), it can be seen that the solid-state reacted powder has sharper diffraction peaks compared to those derived from the co-precipitation method, suggesting the latter method can fabricate particles with smaller crystallite size. Also, there is almost no significant variation in the width of XRD peaks shown in Fig. 2(b) as the temperature increases. This implies that the increment in temperature from 500 to 700 °C does not heavily affect the crystallite size of the products.
A series of La1-xSrxVO3 powders with x increases from 0 to 0.8 were then prepared by the co-precipitation method at 700 °C. The XRD patterns of these powders are shown in Fig. 2(c). Characteristic diffraction peaks corresponding to (101), (002), (220), (202), (123), (004), and (323) planes of LSVO are clearly detected, and traces of additional phases is hardly observed, indicating that single-phase LSVO powders are successfully synthesized. It is noticed that with increasing x, the peaks gradually shift towards higher positions. For example, the peak corresponding to (002) plane is centered at around 22.55 for x = 0, and increases to 22.86, 22.91, 23.08, for x = 0.2, 0.4, 0.6, respectively, and before reaching 23.17 for x = 0.8. This signifies the monotonic change of lattice parameters within the series, i.e., the structural transition from the orthorhombic phase of LaVO3 to the cubic phase of SrVO3. Also, it is recognized that the peaks become broadened as x increases from 0 to 0.6 before being narrowed at x = 0.8. This observation is similar to those reported by Liu and colleagues,24) when they examined the XRD patterns of La1-xSrxVO3 (x = 0, 0.1, 0.3, 0.5, 0.7, and 1). The origin of the shifted and broadened peaks is attributed to the random occupations of La and Sr at A-sites in the ABO3 perovskite structure, causing a wide distribution of lattice parameters.
3.2 Dispersity of LSVO powders prepared by coprecipitation method
3.2.1 SEM analysis
Fig. 3(a-d) show the SEM images of LSVO powders prepared by the co-precipitation method. As seen from the figures, the examined samples are similar in morphology. All powders are composed of fine particles, and no aggregated cluster can be found. This indicates that LSVO powders synthesized through the co-precipitation pathway have a high degree of dispersion. High-resolution SEM images of the representative La0.8Sr0.2VO3 sample are demonstrated in Fig. 3(c) and d to analyze further the morphology of the collected NPs. These particles are rod-like in shape with dimensions below 100 nm. The shape is probably the result of primary particles’ sintering at 700 °C.
Fig. 3
(a-d) Morphologies of LSVO powders prepared by co-precipitation pathway; (e,f) High resolution SEM images (×30,000 and x50000, respectively) of the representative La0.8Sr0.2VO3 powder.

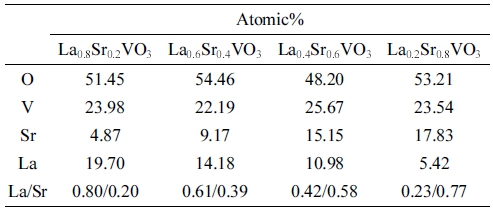

To examine the distribution of elements in the prepared La1-xSrxVO3 (x = 0.2 - 0.8), EDS analysis was also performed in the areas shown in Fig. 3(a-d). The estimated percentages of elements and the atomic La/Sr ratios obtained from EDS are tabulated in Table 1. To determine whether the elements are uniformly distributed, we focus on the relative ratio between the atomic percentage of La and Sr because the amounts of V were fixed during the synthesis process, and the computed contents shown in Table 1 are likely to equal to the sum of La and Sr (with an immaterial degree of variation). The oxygen contents are not taken into account since the computed values are considered somewhat inaccurate due to the EDS’s limitation when measuring light elements.
In all samples, the La/Sr ratios are almost close to the stoichiometrically desired values, albeit with slight Sr deficiencies. The two with low contents of Sr have better stoichiometry compared to the others. The La0.8Sr0.2VO3 has almost the exact stoichiometric composition. The variation is about 0.01 in the sample with x = 0.4, while the differences are 0.02 and 0.03 in the samples with x = 0.6 and 0.8, respectively. The differences, however, can be neglectable because they are just 5 % or less varied from the desired ones. The slight deficiency of the Sr dopant can be interpreted based on the dissolution behaviors of Sr(OH)2 during the precipitation and washing stages. Although the cooling temperature was reduced to as low as 10 °C, there can still be a limited amount of Sr(OH)2 precipitate dissolving into the solution. The amount of dissolved Sr(OH)2 increases with increasing Sr content in LSVO. This explains the larger variation in the La/Sr ratios with increasing x.

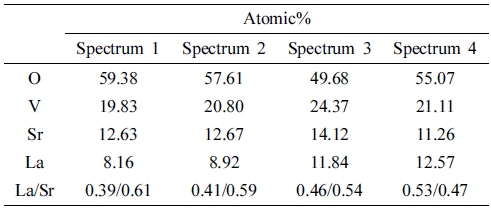

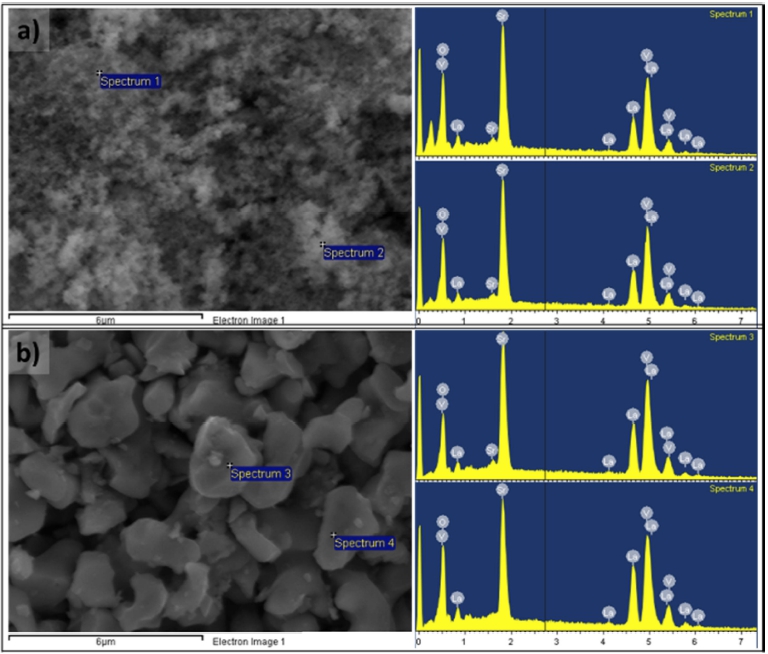

To check the compositional homogeneity of NPs, the elements’ distributions at various points in the LSVO-0.6 prepared by the SSR and co-precipitation methods were analyzed by SEM/EDS. The results are presented in Fig. 4 and Table 2. LSVO NPs prepared by the co-precipitation method show the La/Sr ratios of 0.39/0.61 and 0.41/0.59, which slightly fluctuate around the stoichiometric value. Meanwhile, points taken in the SSR product show significant variations, as the ratios are 0.46/0.54 and 0.53/0.47.
3.2.2 TEM analysis
TEM analysis was performed for the LSVO-0.6 sample to investigate further the morphology of the material. Fig. 5 shows the TEM images of the sample at different magnifications. Fig. 5(a) and (b) depict LSVO-0.6 NPs in the form of rods with lengths of around 100 nm and widths of 50 nm or less. These particles are relatively consistent in shape and size, which is in agreement with the SEM observation. Besides, small aggregated clusters with dimensions of about 100 × 200 nm can also be seen. The rod-like shapes might be developed due to the agglomeration of primary particles at 700 °C. A typical LSVO-0.6 primary particle possesses a spherical shape with dimensions around 20 nm [Fig. 5(c)]. The crystallinity of the particle is reflected in Fig. 5(d). Clear lattice fringes with an interplanar spacing of 0.385 nm, corresponding to (101) plane as detected from XRD pattern, are found.
Again, for compositional homogeneity investigation, TEM/EDS was scanned over a small cluster of LSVO- 0.6 nanoparticles. The elemental maps and composition are displayed in Fig. 6. All elements are distributed universally without any localization within the examined cluster. The La/Sr ratio is about 0.41/0.59, which is close the values reported in the previous section.
Fig. 6
TEM/EDS elemental maps of La0.4Sr0.6VO3 samples prepared by co-precipitation method and the computed composition.
In short, we can conclude that our co-precipitation pathway is capable of producing LSVO NPs with better dispersity and compositional homogeneity compared to the SSR. This improvement is thanks to the enhanced diffusion processes in the precipitate and precursors. On the other hand, the large particle sizes of raw materials in the SSR route impede such a diffusion. The as-discussed inhomogeneity appears as a result of the diffusioninduced mechanism of phase formation.
3.3 Chemistry of Synthesis Procedure

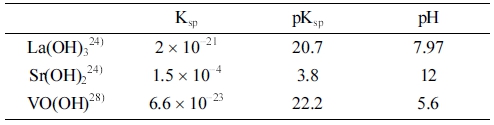

The dissolution of lanthanum oxide (La2O3), strontium carbonate (SrCO3), and vanadium oxide (V2O5) mixture in concentrated hydrochloric acid (HCl) at 110 °C produced a blue color solution, which was due to the V5+ to V4+ reduction resulting in stable vanadyl VO2+ ions25,26) [Eq. (7)]. The solubility data for hydroxide phases are shown in Table 3.
The addition of the blue solution into NaOH produced a dark brown precipitate. The pH of the solution was controlled at around 12 to complete the reaction process. According to Table 3, a high pH value was required for the formation of Sr(OH)2 precipitate. The gel-like precipitate of La(OH)3 was formed at pH around 8 and remained stable at higher pH values, while the case for VO(OH)2 was slightly more complicated. The insoluble hydroxide form VO(OH)2 was described to form at an acidic pH of 5.6.27) As pH increased, this precipitate reportedly converted into soluble complexes,28,29) as expressed in Eq. (1) and (2).
However, also in ref. 28, the pH range in which VO(OH)2 was stable was lengthened when the concentration of vanadium increased. In their study, the hydroxide with a concentration of 10−3 M was maintained in the pH range from about 4.6 to 10. In our experiments, the concentration of vanadium was about 10−1 M; therefore, we believe that the pH-induced conversion of VO(OH)2 into soluble forms did not occur even at a pH of 12. We also exclude the possibility of forming an insoluble sodium vanadate Na(VO)(OH), as stated by Britton and Welford,30) since no trace of Na is reflected in XRD patterns of the obtained powders (see Fig. 2). Because La(OH)3 and Sr(OH)2 were developed in the appearance of white precipitates, the dark brown color observed was attributed to the formation of VO(OH)2 in high pH medium.
Besides, oxidation of V4+-based ions to ionized forms of V5+ was predicted from the literature31,32) as followed:
However, these reactions were unlikely to occur because, as Dean and Herringshaw stated, the kinetics of reactions depended heavily on the diffusion rate of oxygen and the concentration of vanadium in the solution.32) A relatively short interval of interaction and a high V4+ concentration of approximately 10−1 M inhibited the expected oxidation process. In short, co-precipitation of La(OH)3, Sr(OH)2, and VO(OH)2 were obtained by the proper control of the metal ion concentration and the pH value.
The cooling of precipitates in 10 °C water was the most critical step to synthesize LSVO with high stoichiometry. This step aimed to minimize the solubility of strontium hydroxide and thereby maintain the amount of strontium hydroxide. To be specific, the solubility of Sr(OH)2 in water was identified to be 218.3 g/L at 100 °C. This value dropped drastically to 17.7 g/L at 40 °C and 4.1 g/L at 0 °C.33) Also, a high concentration of hydroxide component OH− at high pH played a role in dynamically hindering the dissolution of Sr(OH)2.
Under the air-drying condition, the V4+ to V5+ oxidation due to aerial oxygen occurred, resulting in the production of V2O5 powder [Eq. (13)]. For the other hydroxides, the dehydrations happened to generate respective oxides. The co-precipitation method gave oxides with small particle sizes and excellent dispersion. Accordingly, La1-xSrxVO4 was easily produced at low temperatures, as detected in XRD patterns in Fig. 2(b). This observation is different from Liu’s work,24) where several components, such as La2O3, V2O5, SrO, and LaVO4, were detected in the diffraction patterns of hydrothermally synthesized powders at the temperature range of 500 ~ 700 °C. The formation of a single-phase La1-xSrxVO4 made it easier to produce La1-xSrxVO3 and played a vital role in reducing the heat treatment temperature to 700 °C.
Eq. (5) ~ (15) below represent the chemical mechanism of LSVO NPs formation in the co-precipitation pathway.
3.4 Work Function of LSVO Prepared by Coprecipitation Method
Work function of the LSVO samples were measured by ultraviolet photoemission spectroscopy (UPS). UPS results are presented in Fig. 7(a-b) and the work function values, calculated from the formula: ϕLSVO = hν − (31.22 − KEcutoff), are tabulated in Fig. 7(c).

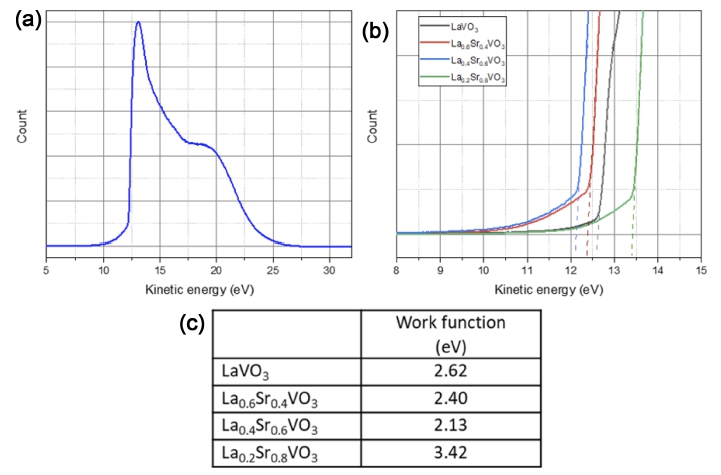

Fig. 7
(a) UPS spectrum of the La0.4Sr0.6VO3 sample; (b) The secondary electron cut-off levels of examined samples; (c) Work function values of LSVO samples.
It can be seen that the LaVO3 sample possesses a relatively low work function (2.62 eV). The work function decreases with the increasing Sr content. Particularly, the La0.6Sr0.4VO3 has a value of 2.40 eV, and the La0.4Sr0.6VO3 has the lowest value of 2.13 eV. Noticeably, the work function of La0.2Sr0.8VO3 increases to 3.64 eV, outweighing the value of the pure material. Sayer et al.34) reported the work function value of La0.3Sr0.7VO3 at 2.40 eV, which lies between our values for x = 0.6 and x = 0.8. Thus, the present data is in good agreement with Sayer’s work. Recently, the work function of La2/3Sr1/3VO3 film in contact with anatase TiO2 was recorded to be 5.01 eV,22) which is much higher than our values. This may be due to the strong influence of the high work function TiO2.
The dependence of work function value on the dopant content can be explained based on the structural transformation with the participation of Sr dopant. The incorporation of Sr2+ in place of La3+ has two opposing effects. Due to the larger ionic radius of Sr2+, the formation of Sr-O bonds increases the size of the surface dipole and reduces the work function. On the other hand, because of the lower valence state of Sr2+, the substitution tends to depolarize the surface dipole, resulting in an increased work function. When the charge of La3+ still plays a role at low concentrations of Sr dopant, the former effect is expected to dominate, whereas the latter effect becomes more pronounced when much of La3+ is replaced by Sr2+.
The intrinsically low work function values of LSVO, especially of La0.4Sr0.6VO3, could be essential for the material to be used in new applications. We assume that using La0.4Sr0.6VO3 instead of La2/3Sr1/3VO3 would improve the performance of p-LSVO/n-TiO2 Schottky diodes. Also, the Schottky barrier height can be modulated by selecting the LSVO material with an appropriate work function. Furthermore, the LSVO material can be utilized in thermionic energy converters and vacuum cathodes for high power microwave sources. In addition, based on the influence of Sr addition on work function, we anticipate that the Ba-doped LaVO3 could also be a potential candidate for low work function material thanks to the larger ionic radius of the isovalent Ba2+ compared to Sr2+.
4. Conclusion
In this study, well-dispersed and compositionally homogeneous LSVO NPs were synthesized successfully by a co-precipitation pathway. The co-precipitation route lowered the synthesis temperature to 700 °C and simplified the preparation steps. Regarding the morphology of the powders, the method not only decreased the particle dimensions but also improved their structural and chemical uniformity. The compositional homogeneity of the synthesized LSVO NPs, verified by both SEM and TEM, is the first to be experimentally realized and reported. In addition, UPS measurements revealed the influence of Sr2+ substitution on LSVO’s work functions, with La0.4Sr0.6VO3 having the lowest value. Our work could pave the way for improved performance of existing applications as well as new potential utilization for the LSVO materials.
